Anti-lock braking programs (ABS) are an essential security characteristic in fashionable autos. They assist to forestall wheels from locking up throughout braking, which might result in lack of management. ABS sensors are liable for detecting when a wheel is about to lock up and sending a sign to the ABS management unit. Over time, ABS sensors can change into soiled or broken, which might have an effect on their capacity to perform correctly. Should you suspect that your ABS sensors could also be soiled or broken, you will need to have them cleaned or changed as quickly as attainable.
There are just a few alternative ways to wash ABS sensors. One methodology is to make use of a brake cleaner. One other methodology is to make use of a cotton swab dipped in rubbing alcohol. If the ABS sensor is especially soiled, chances are you’ll want to make use of a wire brush to take away any built-up dust or particles. As soon as the ABS sensor is clear, make sure you dry it completely earlier than reinstalling it.
In case you are not snug cleansing ABS sensors your self, you possibly can take your automobile to a mechanic to have them cleaned or changed. The price of cleansing ABS sensors will differ relying on the make and mannequin of your automobile and the severity of the issue. Nonetheless, it’s typically a comparatively cheap process.
Figuring out the Location of ABS Brake Sensors
Anti-lock braking system (ABS) brake sensors play a vital position in making certain the protected and environment friendly operation of your automobile’s braking system. These sensors monitor wheel pace and transmit alerts to the ABS management module, which modulates brake stress to forestall wheel lockup throughout braking. To maintain your ABS brake sensors functioning optimally, it is important to determine their places and perceive tips on how to clear and examine them.
ABS Brake Sensor Location

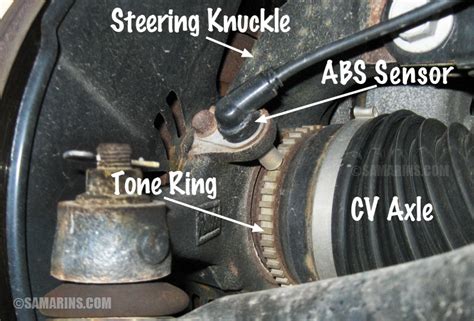

ABS brake sensors are usually positioned close to the wheel hubs, mounted on both the wheel knuckle or the suspension elements. They’re usually fixed with bolts or brackets and could also be shielded by plastic or rubber boots to guard them from street particles and moisture.
The particular location of ABS brake sensors will differ relying on the make and mannequin of your automobile. Check with your automobile’s service handbook or seek the advice of with a professional mechanic for exact data.
| Automobile Sort | ABS Brake Sensor Location |
|---|---|
| Entrance-Wheel Drive Automobiles | Mounted on the wheel hubs or suspension elements behind the brake rotors |
| Rear-Wheel Drive Automobiles | Mounted on the rear axle or differential |
| Vehicles and SUVs | Positioned on the wheel hubs or within the wheel knuckles |
Dismantling the ABS Brake Sensor
1. **Find the ABS Brake Sensor:** The ABS brake sensor is often positioned close to the wheel hub or brake rotor. It’s normally a small, cylindrical machine with a wire harness hooked up to it.
2. **Disconnect the Wire Harness:** Earlier than eradicating the sensor, disconnect the wire harness from it. This may forestall harm to the sensor or the wiring.
3. **Take away the Mounting Bolts or Screws:** The ABS brake sensor is normally held in place by one or two bolts or screws. Use a wrench or screwdriver to take away these fasteners.
When eradicating the bolts or screws, watch out to not overtighten or strip them. If the bolts are rusted or seized, use a penetrating lubricant to assist loosen them.
– **For bolted sensors:** Use a wrench to fastidiously loosen and take away the bolts that safe the sensor to the hub or bracket.
- For screwed sensors: Use a screwdriver to fastidiously unscrew the screws that safe the sensor to the hub or bracket.
4. **Gently Pull Out the Sensor:** As soon as the mounting bolts or screws are eliminated, gently pull the ABS brake sensor out of its housing. Watch out to not harm the sensor or the wiring when doing so.
Inspecting the ABS Brake Sensor for Harm
Visible Inspection
Start by visually inspecting the ABS brake sensor for any seen harm. Search for cracks, breaks, or some other bodily defects that would point out an issue. Additionally, verify the wiring harness for any cuts, tears, or free connections. Should you discover any seen harm, the sensor might must be changed.
Multimeter Check
To additional check the sensor’s performance, use a multimeter set to measure resistance. Disconnect the sensor from the automobile’s wiring harness and join the multimeter results in the sensor’s terminals. The resistance studying must be inside the producer’s specified vary, usually between 1,000 and a pair of,200 ohms.
Knowledge Logger Monitoring
For a extra complete analysis, join a knowledge logger to the sensor and monitor the output sign whereas the automobile is in movement. The info logger will file the sensor’s voltage or frequency output, which could be in comparison with recognized good values. Any deviations from the anticipated output might point out an issue with the sensor.
Further Precautions
* When inspecting or testing the ABS brake sensor, make sure the automobile is parked on a stage floor with the parking brake engaged.
* Disconnect the battery earlier than performing any exams to keep away from electrical hazards.
* In case you are not snug performing these exams your self, seek the advice of with a professional mechanic.
* It is essential to notice that if the ABS brake sensor is just not functioning correctly, it might have an effect on the automobile’s braking efficiency and security.
Cleansing the ABS Brake Sensor
1. Security Precautions
Earlier than starting any work in your automobile, it is important to make sure your security. Park the automobile on a flat, steady floor and have interaction the parking brake. Disconnect the detrimental battery terminal to forestall any electrical accidents. Put on acceptable security gear, together with gloves and eye safety.
2. Figuring out the ABS Brake Sensor
Find the ABS brake sensor in your automobile. It is usually located close to the wheel hub or brake caliper. The sensor is normally a small, cylindrical machine with a wire harness hooked up to it.
3. Eradicating the ABS Brake Sensor
Unbolt or unclip the ABS brake sensor from its mounting bracket. Watch out to not harm the sensor or its wire harness throughout removing.
4. Cleansing the ABS Brake Sensor
Use a gentle material or brush to softly wipe away any dust or particles from the floor of the ABS brake sensor. Pay specific consideration to the sensor tip, the place it comes into contact with the brake rotor. Keep away from utilizing harsh chemical compounds or abrasive supplies that will harm the sensor.
5. Checking the ABS Brake Sensor Cable and Wiring
Examine the ABS brake sensor cable and wiring for any indicators of harm or corrosion. Search for any cuts, frays, or free connections that would have an effect on the sensor’s efficiency. Should you determine any harm, it is essential to exchange the affected element to make sure optimum ABS system performance.
Further Ideas for Inspecting the ABS Sensor Cable and Wiring:
|
Visually examine the cable alongside its whole size for any seen harm, similar to cuts or abrasions. |
Use a multimeter to verify for continuity and resistance within the cable. Any readings outdoors the required vary might point out a fault. |
|
Test the connections at each ends of the cable for any free or corroded terminals. |
Examine the wiring harness for any indicators of chafing or pinching that would doubtlessly compromise the integrity of the wires. |
6. Reinstalling the ABS Brake Sensor
As soon as the sensor and cable have been cleaned and inspected, reinstall them in reverse order of removing. Tighten the mounting bolts or clips securely however don’t overtighten. Reconnect the detrimental battery terminal and confirm that the ABS system is functioning accurately.
Reassembling the ABS Brake Sensor
6. Putting in the ABS Brake Sensor
Securely tighten the sensor bolt or screw utilizing the suitable wrench. The torque specs might differ relying on the automobile make and mannequin, so discuss with the producer’s suggestions or a dependable automotive restore handbook. Overtightening the bolt can harm the sensor or surrounding elements. As soon as tightened, use the torque wrench to make sure correct tightness.
Test for Leaks and Reconnect Elements
Fastidiously examine the brake system for any leaks across the sensor, brake line, or hose connections. If no leaks are discovered, reconnect any electrical connectors or harnesses that had been disconnected throughout the disassembly course of, making certain they’re correctly seated and locked.
Reset the ABS System
Relying on the automobile, the ABS system might must be reset or recalibrated after sensor substitute. Seek the advice of the automobile’s proprietor’s handbook or a professional automotive technician for particular directions on tips on how to reset the system.
Check the ABS System
After reassembling the ABS brake sensor, carry out a check drive to confirm that it’s functioning correctly. Drive the automobile at a protected pace and apply managed braking to interact the ABS system. The ABS ought to have interaction easily, stopping the wheels from locking up and sustaining management of the automobile. If any points are encountered, recheck the sensor set up and guarantee all connections are safe.
Testing the ABS Brake Sensor
To check the performance of the ABS brake sensor:
-
Disconnect {the electrical} connector: Unplug the sensor’s electrical connector from the wiring harness.
-
Join a multimeter: Set the multimeter to the resistance measurement (Ω) perform.
-
Measure resistance: Join the multimeter results in the sensor terminals. A correctly functioning sensor will usually have a resistance worth between 1,000 ohms and 10,000 ohms.
-
Test for continuity: If the multimeter reads “OL” (open circuit), there could also be {an electrical} break within the sensor.
-
Examine for harm: Study the sensor for any seen harm, similar to cracks, damaged wires, or corrosion.
-
Test sensor hole: Measure the space between the sensor and the ABS tone ring. The proper hole varies relying on the automobile and sensor, however usually ranges from 0.02 to 0.06 inches (0.5-1.5 mm).
-
Conduct a dynamic check:
Step Process 1 Drive the automobile at a low pace (10-15 mph). 2 Apply the brakes firmly. 3 Observe the ABS warning gentle. If the sunshine illuminates, it might point out an issue with the ABS system or the sensor.
Resetting the ABS System
After getting cleaned the ABS sensors, you will need to reset the ABS system to make sure that it’s working correctly. Listed here are the steps on tips on how to reset the ABS system:
- Flip off the engine and disconnect the detrimental battery terminal.
- Wait 10 minutes for the system to discharge.
- Reconnect the battery terminal and begin the engine.
- Drive the automobile at speeds of 20-30 mph for about 10 minutes to permit the ABS system to reinitialize.
- Flip off the engine and reconnect the battery terminal.
Eradicating Rust from ABS Sensors
Rust can construct up on the ABS sensors over time, which might intervene with their capacity to perform correctly. Rust formation is especially frequent in areas with excessive humidity or frequent publicity to street salt. Should you discover any rust in your ABS sensors, you will need to take away it as quickly as attainable to forestall additional harm.
To take away rust from ABS sensors, you will have the next supplies:
| Materials | Function |
|---|---|
| Wire brush | To take away free rust |
| Sandpaper (fine-grit) | To easy out the floor of the sensor |
| Rust penetrant | To assist dissolve the rust |
| Electrical contact cleaner | To wash the sensor as soon as the rust has been eliminated |
After getting gathered the mandatory supplies, comply with these steps to take away the rust from the ABS sensors:
- Disconnect the battery terminal.
- Find the ABS sensors and disconnect them from the automobile.
- Use a wire brush to take away any free rust from the floor of the sensors.
- Sand the floor of the sensors with fine-grit sandpaper to easy out any tough edges.
- Apply rust penetrant to the sensors and permit it to take a seat for a number of minutes.
- Use a clear rag to wipe away the rust penetrant and any remaining rust.
- Spray the sensors with electrical contact cleaner to wash them completely.
- Reconnect the ABS sensors to the automobile and reconnect the battery terminal.
- Check the ABS system to verify it’s functioning correctly.
Troubleshooting Frequent ABS Brake Sensor Issues
1. Lack of ABS Perform
If the ABS gentle is illuminated on the dashboard and the ABS system is just not functioning, it might point out an issue with the ABS brake sensor. The sensor might have change into broken, disconnected, or soiled, inflicting it to malfunction.
2. Intermittent ABS Activation
When the ABS system prompts unexpectedly or intermittently throughout regular driving circumstances, it may be an indication of a defective ABS brake sensor. The sensor could also be sending incorrect alerts to the ABS module, inflicting the system to interact unnecessarily.
3. Decreased Braking Efficiency
If the braking efficiency of the automobile has decreased, it might be because of an issue with the ABS brake sensor. The sensor will not be offering correct wheel pace information to the ABS module, leading to lowered braking effectivity.
4. Erratic Automobile Habits throughout Braking
In some circumstances, a defective ABS brake sensor could cause erratic automobile habits throughout braking. The automobile might pull to at least one facet or vibrate excessively, indicating an issue with the ABS system’s capacity to manage wheel lockup.
5. Corrosion or Harm to the Sensor
Publicity to street salt, moisture, or particles could cause corrosion or harm to the ABS brake sensor. This may disrupt the sensor’s sign and result in ABS malfunctions.
6. Unfastened or Disconnected Sensor
If the ABS brake sensor is free or disconnected, it will be unable to supply correct wheel pace information to the ABS module. This can lead to the ABS system not functioning correctly.
7. Defective Wiring or Electrical Connections
Electrical issues, similar to defective wiring or free connections, can even intervene with the operation of the ABS brake sensor. These points can disrupt the sign transmission between the sensor and the ABS module.
8. Malfunctioning ABS Module
Though much less frequent, a malfunctioning ABS module can even trigger ABS brake sensor issues. The module will not be receiving or processing the sensor alerts accurately, leading to ABS system points.
9. Software program Errors within the ABS Module
In uncommon circumstances, software program errors within the ABS module can result in ABS brake sensor issues. These errors could cause the module to misread the sensor alerts or behave abnormally.
10. Diagnostic Hassle Codes (DTCs)
When the ABS system detects an issue with the ABS brake sensor, it’s going to usually retailer a Diagnostic Hassle Code (DTC) within the automobile’s pc. These codes can present helpful details about the particular subject affecting the sensor. Through the use of an OBD-II scanner, a mechanic can retrieve and interpret these DTCs to assist diagnose the issue.
| DTC | Description |
|---|---|
| C0031 | Proper Entrance Wheel Velocity Sensor Circuit Malfunction |
| C0032 | Proper Rear Wheel Velocity Sensor Circuit Malfunction |
| C0033 | Left Entrance Wheel Velocity Sensor Circuit Malfunction |
| C0034 | Left Rear Wheel Velocity Sensor Circuit Malfunction |
| C0035 | Wheel Velocity Sensor Circuit Malfunction (Unspecified) |
| C0050 | ABS Wheel Velocity Sensor System Malfunction |
Easy methods to Clear ABS Brake Sensors
ABS brake sensors are an essential a part of your automobile’s security system. They assist to forestall the wheels from locking up throughout braking, which might result in skidding and lack of management. Over time, ABS brake sensors can change into soiled or broken, which might have an effect on their capacity to perform correctly. Cleansing your ABS brake sensors is an easy and cheap method to assist be sure that they’re working correctly.
To wash your ABS brake sensors, you will have the next supplies:
- A can of brake cleaner
- A wire brush
- A clear rag
After getting gathered your supplies, comply with these steps to wash your ABS brake sensors:
1. Find the ABS brake sensors. They’re normally positioned on the wheel hubs.
2. Spray the ABS brake sensors with brake cleaner.
3. Use the wire brush to wash the ABS brake sensors clear.
4. Wipe the ABS brake sensors clear with the clear rag.
5. Repeat steps 2-4 for the remaining ABS brake sensors.
Folks Additionally Ask
How usually ought to I clear my ABS brake sensors?
You need to clear your ABS brake sensors each time you modify your brake pads or rotors.
What are the signs of soiled or broken ABS brake sensors?
The signs of soiled or broken ABS brake sensors embody:
- The ABS gentle is illuminated in your dashboard.
- Your wheels lock up throughout braking.
- You expertise skidding or lack of management throughout braking.
Can I clear my ABS brake sensors myself?
Sure, you possibly can clear your ABS brake sensors your self. Nonetheless, in case you are not snug working in your automobile, you possibly can take it to a mechanic to have them cleaned.
